Isuzu D-MAX (2021-2022) Grille Kit

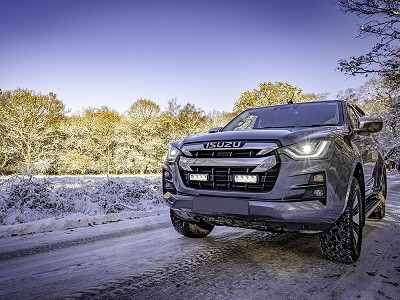

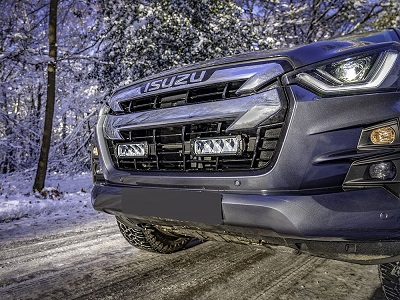

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

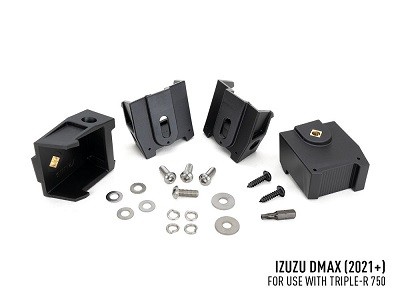

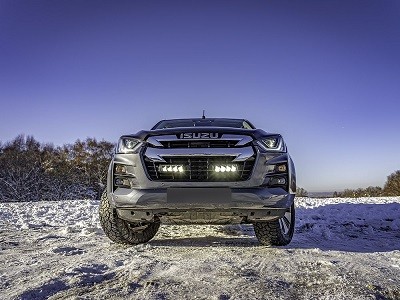

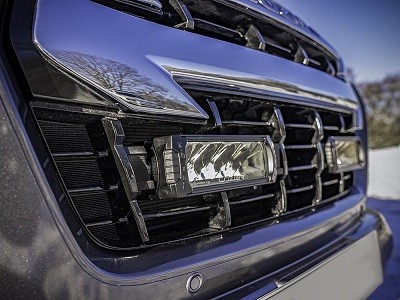

The Isuzu D-Max (2021-2022), includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
Please note, the Isuzu D-Max (2021-2022) Grille Integration Kit is carefully engineered and optimised for use with our Triple-R 750 (Standard or Elite) High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Product Features
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Isuzu D-Max (2021-2022)

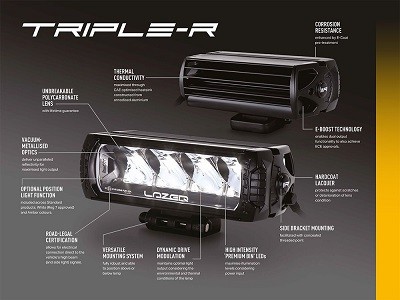

Compatible with Triple-R 750 LED Spotlights
Kit also includes bespoke mounting brackets and wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain
Technical Specifications
2x Triple-R 850 Elite (E-Boost Mode) | 2x Triple-R 850 | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2.6 kg | 2.6 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 16136 Lm | 13860 Lm |
| Total Driver 'FOV' Flux † | 10634 Lm | 8358 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 6 | 2 x 6 |
| Power Consumption | 146 Watts | 132 Watts |
| Current Draw (at 14.4V) | 10.2 Amps | 9.2 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | N/A (17.5 x2 - E-Mark Mode) | 45 x2 |

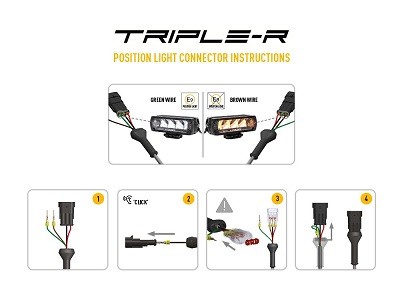

| Position Light (White only) | N/A | ECE R7 |

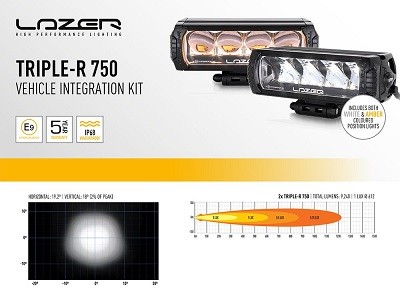

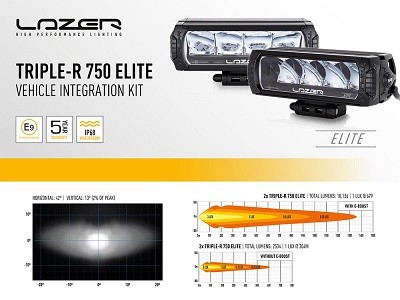

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 42° | 19° |

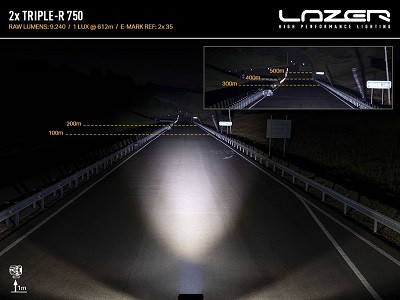

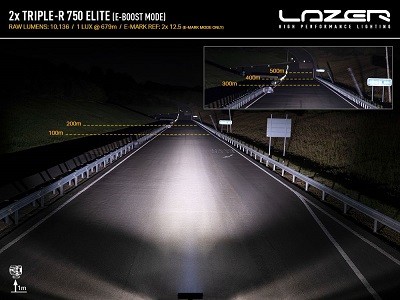

| 0.25 lx Line | 1643m | 1500m |
| 0.5 lx Line | 1162m | 1061m |
| 1 lx Line | 822m | 750m |
| 3 lx Line | 474m | 433m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
